Retaining
Wall for BART Jungle, before Pergola
by
Felipe Bjeletic,
Troop
199, Fremont
|
 |
|
For my Eagle Project we constructed a
retaining wall on the trail next to the pond. This wall was made in
order to address the dirt erosion issue occurring along the parts of the
trail adjacent to and due to the BART roads. This wall was 30 feet long
and 2 feet tall. We used six, 10 feet long and 1 foot high pressure
treated boards. We started off by leveling the trail, removing the dirt
that had eroded onto the trail. We then bolted together the posts and
half the boards together to make sure the spacing for the holes was
correct, also making it easier for the next day to complete the wall.
Next we used an Auger as well as a San Angelo bar to make four, 16 inch
deep holes, and then filled the bottom up with 4 inches of gravel. We
placed the three feet tall 4x6 posts into the holes and made sure they
were level before filling it up with concrete post mix and letting it
set until the next day. The next day we came back and finished bolting
the boards together, using 5/8in bolts, and only had to put the top half
of the boards since we did the other the day before. After that we
cleaned up our project site and the project was done.
 |
 |

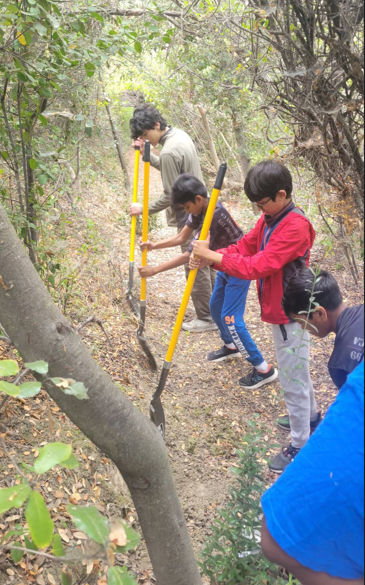

| preparing area
for poles |

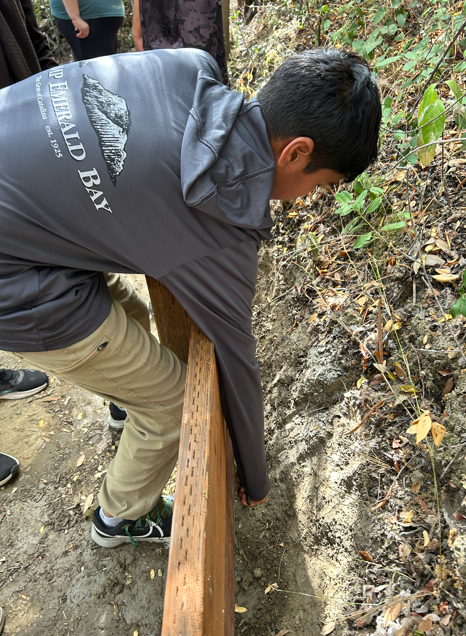

assembling retaining wall |

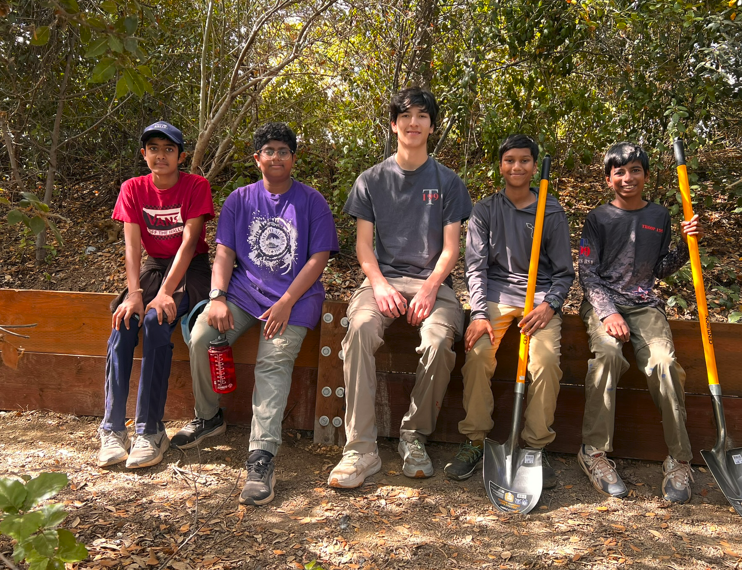

Many scouts, adults and friends showed up
to help out during the 7 total hours of work that the project took
up on both days. This project required a lot of work and would not
have been possible without the efforts of the volunteering scouts
that showed up. Many of the younger scouts helped out with tasks
like digging up dirt and tightening bolts, while the adults took on
the tasks of digging holes with the auger and drilling holes into
the posts.
.
 |
 |
|

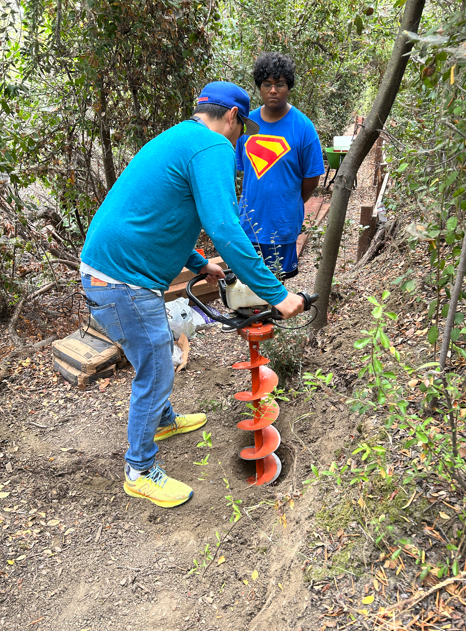

drilling holes |

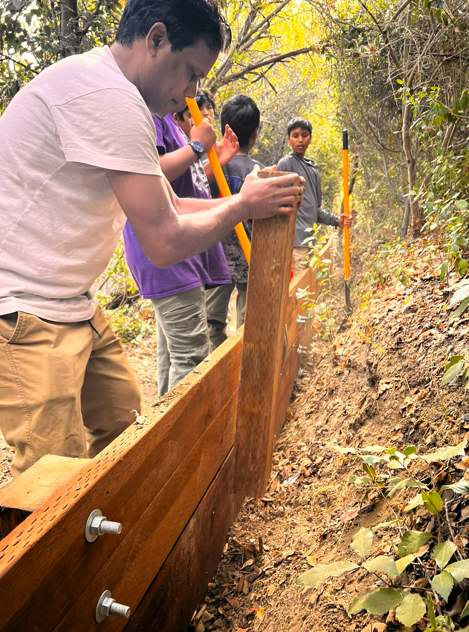

finished touches for retainer |
