Applied Science - Technology (3A)
Pre Lab


OBJECTIVES:
  • Exploring DC and AC electric current.
  • Investigating a battery.

VOCABULARY:

  • battery
  • circuit
  • current
MATERIALS:
  • worksheet
  • construction paper
  • puff paint (optional)
  • foam cut outs (optional)
  • glitter (optional)

Students discover how a battery works.

BACKGROUND:

An electric current is the flow of electric charge which transports energy from one place to another. It is measured in amperes, where 1 ampere is the flow of 6 1/4 billion-billion electrons (or protons) per second. However, no current exists unless there is a complete pathway or circuit through which electrons may flow. The flow of electricity through a circuit can be stopped by breaking or opening the circuit with a switch. By closing the circuit the flow of electricity can be restored.

There are two possible types of electric flow, direct and alternating current. Direct current means that the flow of charges is in one direction. A battery produces direct current (DC) because there is no way to change the + and - you see on the battery. Alternating current (AC) has electrons in the circuit that quickly move first in one direction and then in the opposite direction, alternating back and forth between relatively fixed positions. When you use a transformer, you are using AC. Many calculators, cellular phones and other common items use an AC adapter or transformer which helps extend the longevity of the item. The worksheet shows direct current.

Benjamin Franklin was the first to notice the direction of electrical flow (from the smooth wax to the rough wool), he set a precedent for electrical notation that exists to this day.  However, today we know electrons are  displaced from the wool to the wax, not from the wax to the wool. This is why electrons are said to have a negative charge because Franklin thought  electric charge moved in the opposite direction that it actually does, and so objects he called "negative"  have a surplus of electrons.

By the time the true direction of electron flow was discovered, the nomenclature of "positive" and "negative" had already been so well established in the scientific community that no effort was made to change it.  However,  many engineers decided to retain the old concept of electricity with "positive" referring to a surplus of charge, and label charge flow (current) accordingly. This is known as conventional flow notation.

Electric currents travel easily through some materials like metal and poorly through others like plastic. The substances that electricity can easily flow through are called conductors, those that do not allow electricity to flow are called non-conductors. Some substances restrict the flow of electricity and these are called semiconductors. Silicon is the most famous semiconductor used in the computer industry.

PROCEDURE:

  1. When a circuit is complete, as shown on the student's worksheet, the current flows from a region with excess or high number of electrons (the negative pole of a battery) to a region with relatively few or low electrons (the positive pole of a battery).

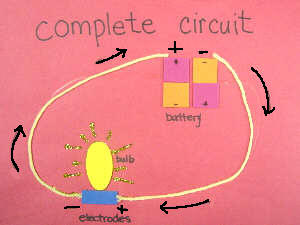

  2. Use art to illustrate the flow of electrons in a closed circuit.  In the picture it shows how paint, glitter, and foam cut outs can reinforce the movement of electrons.

  3. Batteries are the simplest source of power for DC. Batteries are chemical apparatuses that allow "electrons" to be generated for use later on. Each battery has either 1 cell or multiples of cells. Each cell is 1.5 volts. Many of the common batteries are composed only of 1 cell. Whether the battery is an A, AA, B, C, or D, size determines how long the battery will last. It does not refer to the voltage. A six-volt battery has 4 unit cells stacked in a series. You may want to show students different batteries and a transformers.

  4. ANSWERS:
    1. Current flows from the negative to the positive.
    2. A switch is closed when it completes the circuit and allows electrons to flow continuous.
    3. An electric circuit is when the circuit is closed and the electrons are flowing. Display a battery or other source that can generate electrons.
